基于Pancake系統的折反射成像系統
摘要
為了降低成本和重量，許多現代應用引入智能方法來使其光學系統小型化。該原理的一種創新實現是折疊成像系統，其中聚焦透鏡的特性分布在多個組件之間。通過巧妙地操縱傳播光束的偏振態，該系統允許多次內部反射，從而實現模擬更大透鏡的功能。本示例我們定義了一組包含不同入射角度的平面波，然后將其通過系統傳播計算出最終的焦點。
 系統描述

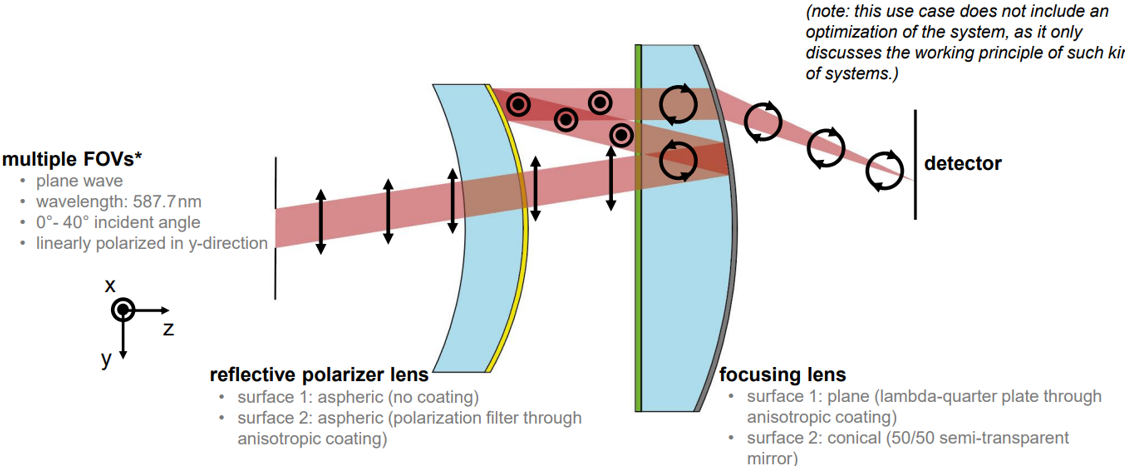

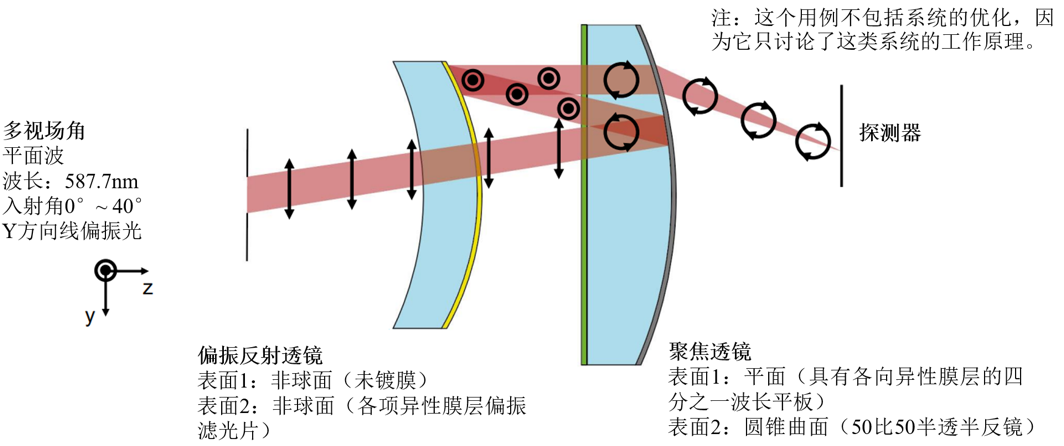

Catadioptric Imaging System Based on Pancake Lenses
Abstract
In order to reduce costs and weight, many modern application introduce smart ways to miniaturize their optical systems. One particular implementation of this principle is the folded imaging system, in which the property of a focusing lens is distributed between multiple components. By cleverly manipulating the polarizations status of the propagated light, this system allows for multiple internal reflection, mimicking the functionality of a much bigger lens. we defined a set of Plane Wave with different incident angles, which then are propagated through the system to calculate the focal spots at the end.
System Demonstrate
